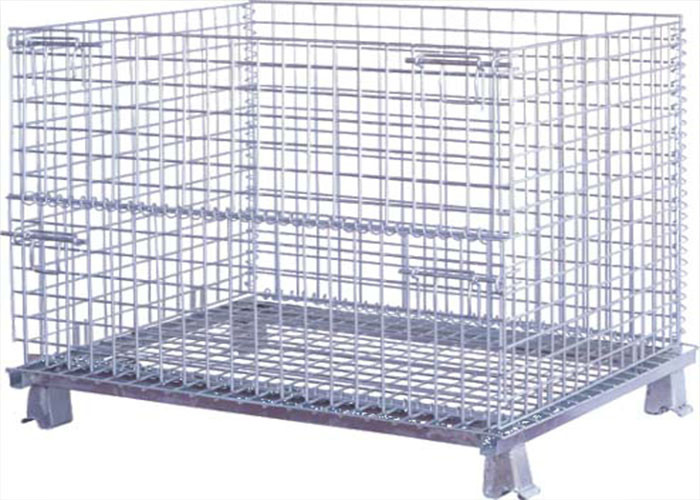

Foldable Collapsible Wire Mesh Cage with Wheels for Logistics Goods Transportation

1. Efficient Foldable Design: Adopts a one-click folding structure—no tools required, and a single person can complete folding/unfolding in 15-30 seconds. When collapsed, the height is reduced from 1200mm to 240mm, and 10 collapsed cages can be stacked to save 80% of storage space, reducing empty cage storage costs for logistics companies.

2. Smooth Mobile Performance: Equipped with 4 high-quality rubber wheels (2 with brake function), each wheel has a load-bearing capacity of 80kg, and the total load-bearing capacity of the cage is 500-800kg. The wheels have good shock absorption and wear resistance, and can move smoothly on concrete, asphalt, and other ground surfaces without damaging the floor; the brake function ensures stable parking during loading/unloading.

3. Sturdy & Durable Structure: The frame is made of 4mm diameter high-carbon steel wire (Q235), and the mesh is made of 2.5mm diameter steel wire, with a mesh size of 50×50mm—effectively preventing goods from falling while ensuring visibility of internal goods. The entire cage is welded with robot spot welding, with a weld pull-off force ≥ 500N, and no welding cracks or detachment.

4. Anti-Rust & Long-Lasting: Undergoes overall hot-dip galvanizing treatment (zinc layer thickness ≥ 70μm) or electrostatic powder coating (thickness ≥ 60μm), with excellent corrosion resistance—salt spray test shows no rust for ≥ 400 hours (hot-dip galvanizing) or ≥ 200 hours (powder coating). It can be used outdoors or in humid logistics warehouses for 8-12 years.

5. Humanized & Safe Details: The cage door is designed with a spring-loaded latch, which can be opened/closed with one hand for convenient goods access; the top edge of the frame is polished to a rounded shape (radius ≥ 2mm) to avoid scratching operators; the bottom is reinforced with a steel plate, enhancing load-bearing capacity and preventing the mesh from being pressed and deformed by heavy goods.

1. Steel Wire Preparation: Select high-carbon steel wires (Q235) that meet national standards, and use a wire drawing machine to straighten the wires (straightness error ≤ 0.5mm/m) to ensure the uniformity of the mesh.

2. Mesh Weaving & Cutting: Adopt an automatic mesh weaving machine to weave the steel wires into 50×50mm mesh sheets, then use a CNC cutting machine to cut the mesh sheets into the required size (e.g., 1200×800mm for the side panel) with a cutting error ≤ 1mm.

3. Frame Forming & Welding: Use a hydraulic bending machine to bend the 4mm diameter steel wire into the cage frame (length×width×height: 1200×800×1200mm as standard), then assemble the mesh sheets and frame, and use a robot spot welding machine for welding (welding spot diameter ≥ 5mm, spacing ≤ 50mm). After welding, conduct a deburring treatment to remove sharp edges.

4. Surface Anti-Rust Treatment: For hot-dip galvanizing: immerse the welded cage in 450℃ molten zinc for 3-5 minutes, then cool it naturally to form a uniform zinc layer. For electrostatic powder coating: first conduct degreasing, derusting, and phosphating pretreatment, then spray epoxy resin powder, and bake at 180-200℃ for 25 minutes.

5. Wheel & Accessory Assembly: Install rubber wheels (with ball bearings) on the bottom of the cage using stainless steel bolts (bolt torque ≥ 25N·m); assemble the spring-loaded latch on the cage door, and test the opening/closing smoothness.

6. Finished Product Inspection: Test the foldable function (500 times of folding/unfolding without structural damage), load-bearing capacity (1.2 times the rated load for 24 hours without deformation), wheel movement (1000 meters of movement without abnormal noise or wheel damage), and anti-rust performance (sampling for salt spray test) to ensure compliance with GB/T 13912-2020 and ISO 12100 safety standards.

1. Logistics Distribution Centers: Used for temporary storage and transfer of small-batch goods (e.g., express packages, e-commerce parcels). The foldable design saves space for empty cage storage, and the wheels facilitate goods transfer between sorting areas and delivery trucks, reducing sorting time by 30%.

2. Warehouse Inter-Department Transfer: Suitable for transferring goods between warehouse storage areas, picking areas, and packaging areas. The mobile function eliminates the need for forklifts for short-distance transfer, reducing equipment operation costs and avoiding forklift operation risks.

3. Road/Sea Freight Transportation: Used as a container auxiliary tool for transporting fragile or irregular goods (e.g., electronic products, furniture parts). The cage can fix goods to prevent collision damage during transportation, and the foldable design saves space in the truck/container when returning empty.

4. Retail Chain Distribution: For distributing goods from the central warehouse to retail stores (e.g., clothing, daily necessities). The cage can be directly pushed into the store’s backroom for unloading, reducing the need for intermediate turnover containers and improving delivery efficiency.

5. Manufacturing Workshop Transfer: Used in factories to transfer semi-finished products or raw materials between production lines. The sturdy structure can withstand the impact of workshop operations, and the wheels can move smoothly on the workshop floor, adapting to the fast-paced production rhythm.

1. Professional Logistics Product R&D: We have a dedicated R&D team with 8+ years of experience in logistics storage equipment, and have optimized the foldable structure and wheel configuration of the cage based on 500+ logistics enterprise usage scenarios. For example, the folding hinge is made of wear-resistant alloy material, which increases the service life by 50% compared to ordinary hinges.

2. Strict Quality Control: From raw material procurement (each batch of steel wire has a quality inspection report) to finished product delivery (100% full inspection), we implement a 5-level quality control system (raw material inspection → process inspection → semi-finished product inspection → finished product inspection → pre-delivery sampling inspection). Each cage has a unique serial number for quality traceability.

3. Customization Service: We support personalized customization according to customer needs, such as adjusting the cage size (e.g., 1000×600×1000mm for small goods), changing the mesh size (e.g., 30×30mm for small parts), and adding accessories (e.g., label holders, partition boards). The minimum order quantity for customization is 20 pieces, and the design cycle is within 3 working days.

4. Cost-Effective & Fast Delivery: As a direct manufacturer with a production capacity of 10,000+ cages per month, we eliminate middleman markups, and the product price is 20%-25% lower than that of distributors. For standard products, we have a stock of 3,000+ units, and the delivery time is 2-4 working days; for customized products, the delivery time is 7-10 working days.

5. Comprehensive After-Sales Service: Provide a 5-year free warranty (non-human damage, such as frame deformation, wheel damage, and zinc layer peeling). If there is a quality problem within 60 days of receipt, we support free return and exchange. We also provide on-site installation guidance and maintenance services in 60+ cities nationwide, and offer a cage recycling service (providing a 10% discount on new cages when old cages are returned).
